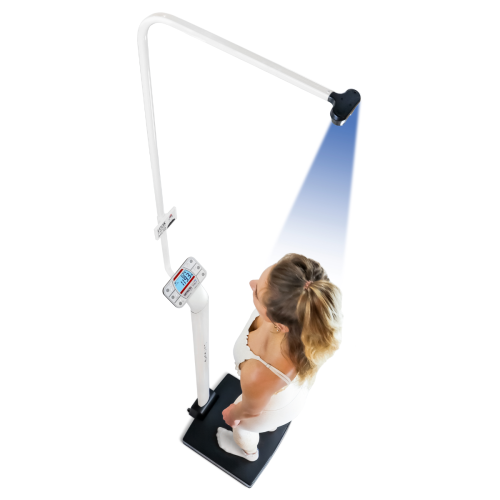

DETECTO’s APEX-SH series eye-level digital physician scales feature touchless sonar height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scale automatically captures patient weight and height readings and displays both onscreen without pushing a single button. The apex® features 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high LCD weight readouts, BMI calculation, AC or battery power (AC adapter included on some models), 1 RS232 serial port and 1 micro USB-B port, HL7 IEEE 11073 compliance, and Wi-Fi and Welch Allyn connectivity available.

Features

• 0.75-Inch-High LCD Weight Readouts
• 10 Different apex Models Available
• 1 RS232 Serial Port and 1 Micro USB-B Port
• 6 Easy-to-Use Buttons
• 600 lb x 0.2 lb / 300 kg x 0.1 kg Capacity
• BMI Calculation
• Dual Integral Wheels
• HL7 IEEE 11073 Compliant (standard)
• Measure Weight and Height Without Pushing A Single Button
• Platform Size: 17 in W x 17 in D x 2.75 in H
• Touchless Sonar Height Rods
• Wi-Fi and Welch Allyn Connectivity Available

Specifications

• Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
• Platform Size: 17 in W x 17 in D x 2.75 in H / 43.2 cm W x 43.2 cm D x 7 cm H
• Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)
• Power: 12 AA batteries (not included) or AC adapter (included)
• Height Rod: Sonar touchless height rod
• Height Rod Measures: 24” (2’) - 86” (7’2”) x 0.2 in / 60 cm - 218 cm x 0.5 cm
• Overall Dimensions: 17 in W x 19.5 in D x 89.5 in H / 43 cm W x 49.5 cm D x 227.3 cm H
• Ports: 1 RS232 serial port and 1 micro USB-B port
• Device Connectivity: HL7 IEEE 11073 compliant (standard); Welch
  Allyn® device connectivity available on some models (CVSM, CSM, and
  LXI); Wi-Fi Ethernet models also available for wireless EMR/EHR
• Net Weight: 32 lb / 14 kg
• Shipping Weight: 41 lb / 19 kg
• Shipping Dimensions: 58 in x 20 in x 6 in / 147 cm x 51 cm x 15 cm
• Keypad: 6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)

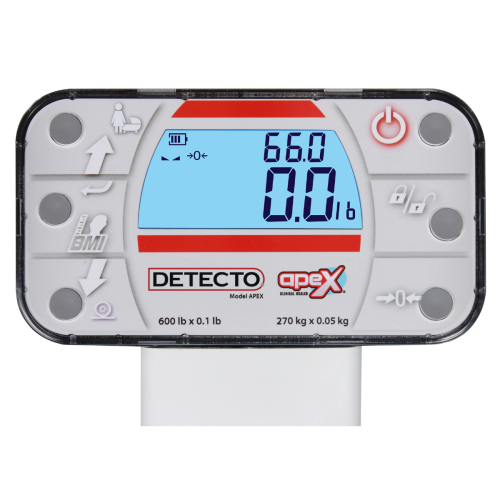

• Display Type: Dual-row, seven-segment, clinical-blue LCD
• Number of Characters: Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high
• Operating Environment: Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing
• Digital Filtering: StableSENSE® Adjustable Filtering
• Construction: Column – aluminum white powder coated; base - steel; indicator enclosure - ABS
